Pulse Lighting Image Based Laser Sensor IP67 IX - 150

Name: Pulse Lighting Image Based Laser Sensor IP67 IX 150
Brand: Keyence
Price: 125 USD

Pulse Lighting Image Based Laser Sensor IP67 IX - 150 Manufactures

Brand Name : Keyence

Model Number : IX-150

Certification : CE

Place of Origin : Japan

MOQ : 1

Price : USD$125/PC

Payment Terms : D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500

Delivery Time : 5-8 work days

Packaging Details : Carton

Model : IX-150

Reference distance : 150 mm

Measuring distance : 100 to 200 mm

Repeatability : 50 μm

Image receiving element : Monochrome CMOS image sensor

Light source : Red LED

Lighting method : Pulse lighting

Temperature characteristics : 0.04% of F.S./°C *8

Enclosure rating : IP67

Ambient light : Incandescent lamp, 5000 lux or less

Ambient temperature : 0 to +45°C (No freezing)

Relative humidity : 35 to 85% RH (No condensation)

Vibration resistance : 10 to 55 Hz; double amplitude 1.5 mm; 2 hours in each of the X, Y, and Z directions

Shock resistance : 500 m/s2, 3 times in each of the 3 directions

Material : Main unit case: Zinc die-casting / Front cover: Glass, acrylic (hard coat) / Operation indicator cover: TPU / Connector ring: PBT / Connector: Zinc die-casting

Weight : Weight

Contact Now

Japan Keyence Image-Based Laser Sensor IX / IL / IA Series IX-150 IX-080 Laser Sensor Measuring distance 100 to 200 mm

Image-Based Laser Sensor

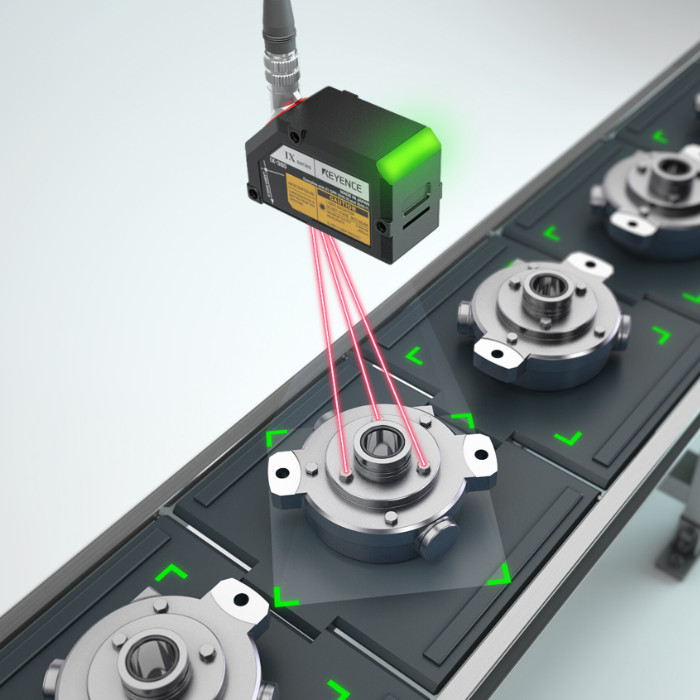

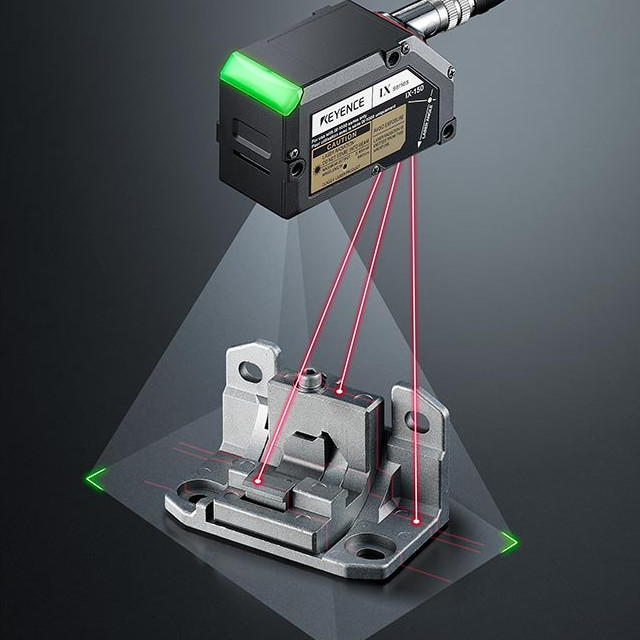

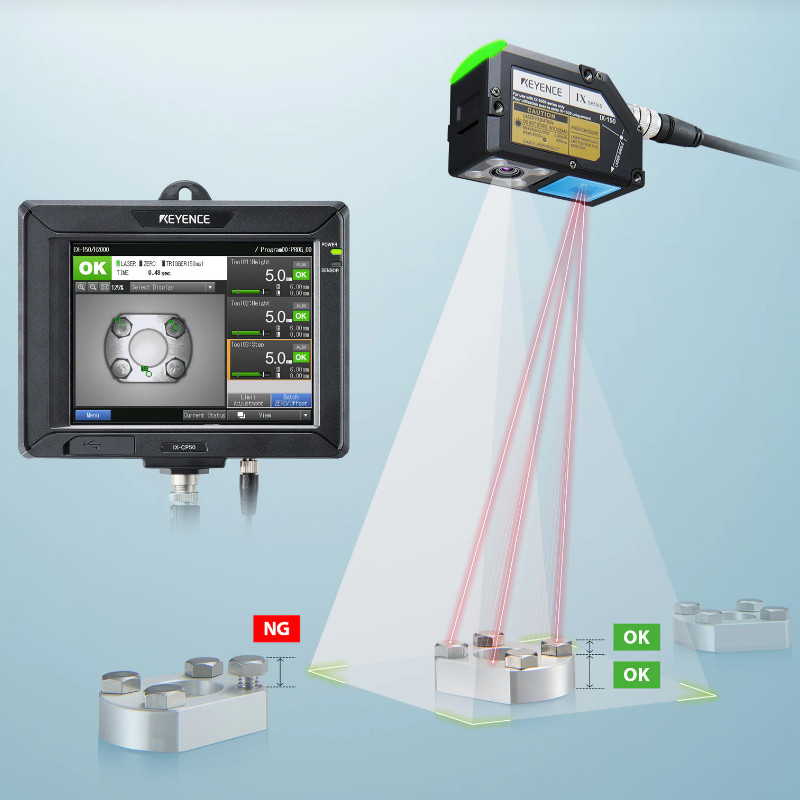

IX Series image-based laser sensors can measure height anywhere within the area. Camera-based image recognition allows the laser to detect the height of the target point even when workpieces are not perfectly aligned on the production line. The height of where the laser hits the target will vary if the target is tilted or if the target itself is different, but the IX Series can identify the difference in height against the reference. For example, in a parts assembly line, a single IX Series unit can not only check for the presence of parts, but also perform seating checks and other height-based inspections. Thanks to its ability to detect height differences, the IX Series is also free from false detections and errors in the presence of glare from glossy surfaces of metal parts or when the detection target point has the same colour as the background, offering stable automatic inline differentiation.

These easy-to-use sensors can be used in a large variety of diverse applications such as highly accurate positioning and product type difference checking. The lineup also includes a brand-new image-based laser sensor that automatically corrects target misalignment to simultaneously detect multiple points with high accuracy.

Specifications

item	value
Model Number	IX-150
Type	Photoelectric Sensor
Place of Origin	Japan
Brand Name	Keyence
Usage	safety light curtain
Theory	light curtain
Output	NPN, PNP, Relay NO, Relay NC
Description	Image-Based Laser Sensor
Reference distance	150 mm
Measuring distance	100 to 200 mm
Repeatability	50 μm
Image receiving element	Monochrome CMOS image sensor
Light source	Red LED
Enclosure rating	IP67
Ambient temperature	0 to +45°C (No freezing)
Relative humidity	35 to 85% RH
Weight	Approx. 190 g
Condition	100% Original

Pulse Lighting Image Based Laser Sensor IP67 IX - 150

Product Tags:

IX-150 Image Based Laser Sensor

Image Based Laser Sensor IP67

Pulse Lighting Image Based Laser Sensor IP67 IX - 150 Images
