Original METSO Valve Positioner Model EJ05 Type ND9103HN ND9102HN ND9103HN-K1

Metso's Neles ND9000 is designed to operate on every control valve actuator and in all industry areas. ND9000 is a smart, reliable and future-proof positioner with life-time support. Its superior design features and unique diagnostics provide a solid foundation for performance optimization and proactive maintenance.

Features

• Benchmark control performance on rotary and linear valves
• Superior diagnostics and data storage capabilities
• Local and remote configuration
• Easy interpretation of diagnostics data with Metso FieldCare software
• Efficient mounting program for all types of actuators
• Low power consumption
• Available for HART, PROFIBUS-PA and FOUNDATION Fieldbus networks
• Reliable and robust design
• Device self diagnostics
• On-line, performance and communication diagnostics
• Hot swap support: possibility to install also on valves that are in process with 1-point calibration feature
• SIL 2 approved device

Benefits

• Minimize variability
• Open solution based on FDT technology
• Supports Electronic Device Description Language (EDDL) technology
• Total cost of ownership
• Easy to use
• Open solution
• Product reliability
• Easy installation and configuration □ Same device can be used for linear and rotary valves, double and single-acting actuators □ Simple fast calibration and configuration □ using Local User Interface (LUI) □ using FieldCare software in a remote location □ using Distributed Control System (DCS) asset management tools □ Extensive selection of mounting kits for 3rd party actuators □ Low power comsumption enables installation to all common control systems Open solution □ Metso is committed to delivering products that freely interface with software and hardware from a variety of manufacturers; ND9000 is no exception. This open architecture allows the ND9000 to be integrated with other field devices to give an unprecedented level of controllability. □ FDT and EDD based multi-vendor support configuration □ Support files for ND9000 are available from our internet pages, at www.metso.com/valves - choose the link: download cente
• Neles ND9000 in fieldbus networks □ Approved interoperability □ Host interoperability ensured □ FOUNDATION fieldbus ITK version 6.1.2 certified □ Profibus PA profile version 3.0 PNO certified □ Easy to upgrade; by replacing the HART communication board with a fieldbus communication board □ Excellent maintainability with firmware download feature □ Advanced communication diagnostics □ Digital communication via the fieldbus includes not only the set point, but also the position feedback signal from the position sensor. No special supplementary modules for analog or digital position feedback are needed when using the fieldbus valve controller. □ Back up LAS functionality available in FOUNDATION fieldbus enviroment □ Input selector and output splitter blocks available in FOUNDATION fieldbus devices allowing advanced distributed control □ Standard function blocks enables the freedom to use the ND9000 intelligent valve controller in either continuous or onoff control applications □ Open and close information is directly available via the fieldbus □ Open and close detection is based on either position measurement (soft limit switch) or mechanical limit switch information ND9000 mounting on actuators and valves □ Mounted on single and double acting actuators □ Both rotary and linear valves □ Ability to attach options to electronics and mechanics later □ 1-point calibration feature enables mounting without disturbing the process Product reliability □ Designed to operate in harsh environmental conditions □ Rugged modular design □ Excellent temperature characteristics □ Vibration and impact tolerant □ IP66 enclosure □ Stainless steel enclosure (ND9300 and ND9400) □ Protected against humidity □ Maintenance free operation □ Resistant to dirty air □ Wear resistant and sealed components □ Contactless position measurement Predictive maintenance □ Easy access to collected data with Metso FieldCare software □ Unique Online Valve Signature to detect valve friction even more accurately. □ Performance view with report, which gives guidelines for recommended actions. □ Logical trend and histogram collection □ Information collected during process uptime □ Extensive set of off-line tests with accurate key figure calculations □ Fast notifications with on-line alarms □ Condition monitoring tool available □ Real time monitoring of valve control parameters TECHNICAL DESCRIPTION The ND9000 is a 4–20 mA or fieldbus powered microcontrollerbased intelligent valve controller. The device contains a Local User Interface (LUI) enabling local configuration. A PC with FieldCare software can be connected to the ND9000 itself or to the control loop. The powerful 32-bit microcontroller controls the valve position. The measurements include: □ Input signal □ Valve position with contactless sensor □ Actuator pressures, 2 independent measurements □ Supply pressure □ Spool valve position □ Device temperature Advanced self-diagnostics guarantees that all measurements operate correctly. After connections of electric signal and pneumatic supply, the micro controller (μC) reads the input signal, position sensor (α), pressure sensors (Ps, P1, P2) and spool position sensor (SPS). A difference between input signal and position sensor (α) measurement is detected by control algorithm inside the μC. The μC calculates a new value for prestage (PR) coil current based on the information from the input signal and from the sensors. The changed current to the PR changes the pilot pressure to the spool valve. Reduced pilot pressure moves the spool and the actuator pressures change accordingly. The spool opens the flow to the driving side of the double diaphragm actuator and opens the flow out from the other side of the actuator. The inc
• Prevention and prediction

  Brand	Mesto
  Type	ND9103HN
  Color	silver

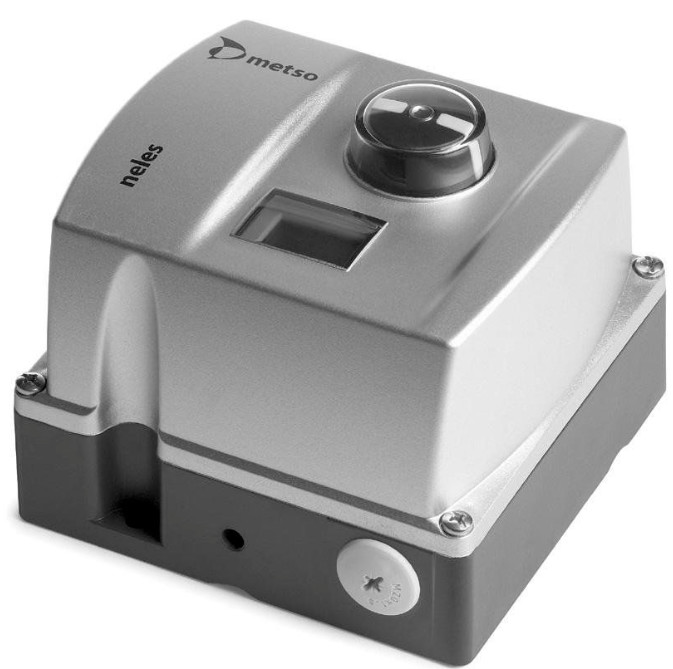

EJ05 METSO Valve Positioner

Original METSO Valve Positioner

ND9103HN

Original METSO Valve Positioner Model EJ05 Type ND9103HN ND9102HN ND9103HN-K1 Images
