| Spool symbol |
Symbol D |
| Max. pressure |
350 |
| Electrical connection description |
Connector 3-pole (2 + PE) according to EN 175301-803 |
| Productgroup ID |
9,10,11,12,13,14 |
| Number of ports |
4 |
| Type of actuation |
with solenoid actuation |
| Size |
10 |
| Electrical connector |
Connector 3-pole (2 + PE) |
| Max. flow |
150 |
| Type of connection |
Subplate mounting |
| Connection diagram NFPA |
NFPA T3.5.1 R2-2002 D05 |
| Size_CETOP |
D05 |
| Connection diagram |
ISO 4401-05-04-0-05 |
| Supply voltage |
24 VDC |
| Number of switching positions |
2 |
| Weight |
4.100 |
| Seals |
NBR |
| Hydraulic fluid |
HL,HLP,HLPD,HVLP,HVLPD,HETG,HFC |

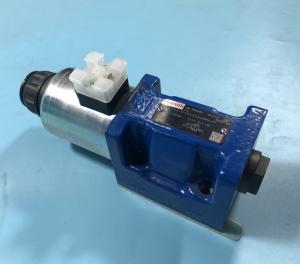

Size 10, symbol D, electrical with solenoid, 24 V DC
Industrial hydraulic valve in a high performance range. Reliable switching of the oil flow direction according to hydraulic symbol.
Unpacked Weight: 4.100 kg
The 5-chamber directional valve type 5-.WE is a solenoid-actuated directional spool valve with switching time increase. It controls the start, stop and direction of a flow. The directional valve basically consists of housing (1), one or two electronic solenoids (2), control spool (3), and the return springs (4).
In de-energized condition, the control spool (3) is held in the central position or in the initial position by the return springs (4) (except for valves without spring "O").
If the wet-pin electronic solenoid (2) is energized, the control spool (3) moves out of its rest position into the required end position. In this way, the required direction of flow according to the selected symbol is released.
After the electronic solenoid (2) has been switched off, the control spool (3) is pushed back into the central position or in the initial position (except for valve with "OF" detent and valve without spring type "O").
A manual override (6) allows for the manual switching of the valve without solenoid energization.
To ensure proper functioning, make sure that the pressure chamber of the solenoid is filled with oil.
