Fluke 368FC 369FC True RMS Leakage Current Digital Clamp Meter 40 mm Fluke 369

Brand Name : Fluke

Model Number : 368FC 369FC

Certification : -

Place of Origin : -

MOQ : 1

Price : USD350/PC

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000

Delivery Time : 3DAYS

Packaging Details : Original

Brand : Fluke

Type : 368FC 369FC

AC Ampere Range : 3, 30, 300 mA

Frequency : 40 Hz to 1 kHz

Crest Factor : 3

Display (LCD) : Digital readout: 3300 count

Display Refresh Rate : 4 times/sec

Contact Now

Features
* True RMS measurements for accuracy when measuring complex, non-sinusoidal waveforms
* 1.6" (40 mm) jaw opening
* Highest resolution of 1 µA, measure up to 60 A
* Selectable filter function removes unwanted noise
* Max/Min/Average readings and hold function
* Forward-facing LED work light for use in dark wiring cabinets
* Backlit display; auto backlight off and auto power off for extended battery life
* Internal Memory Logging: up to 65,000 measurement points
* CAT III 600 V safety rating
Fluke 368FC 369FC True RMS Leakage Current Digital Clamp Meter 40 mm Fluke 369
Fluke 368 FC - Wireless Leakage Current Clamp Meter (40mm Jaw)
* Highest resolution of 1μA, measure up to 60A
* Selectable filter function eliminates unwanted noise
* Max/Min/Average readings and hold function
* Forward-facing LED worklight for use in dark wiring cabinets
The Fluke 360 Series of true-rms leakage current clamp meters help users detect, document, record and compare leakage current readings over time as a means of preventing unplanned downtime, and identifying intermittent GFCI and RCD trips, without taking equipment off line.
The Fluke 368 FC and 369 FC have large diameter jaws (40 mm for the 368 FC, 61 mm for the 369 FC) for work with larger conduc- tors. The clamp’s jaw is fully shielded to accurately capture very small leakage signals, and to minimize external electromagnetic interference.

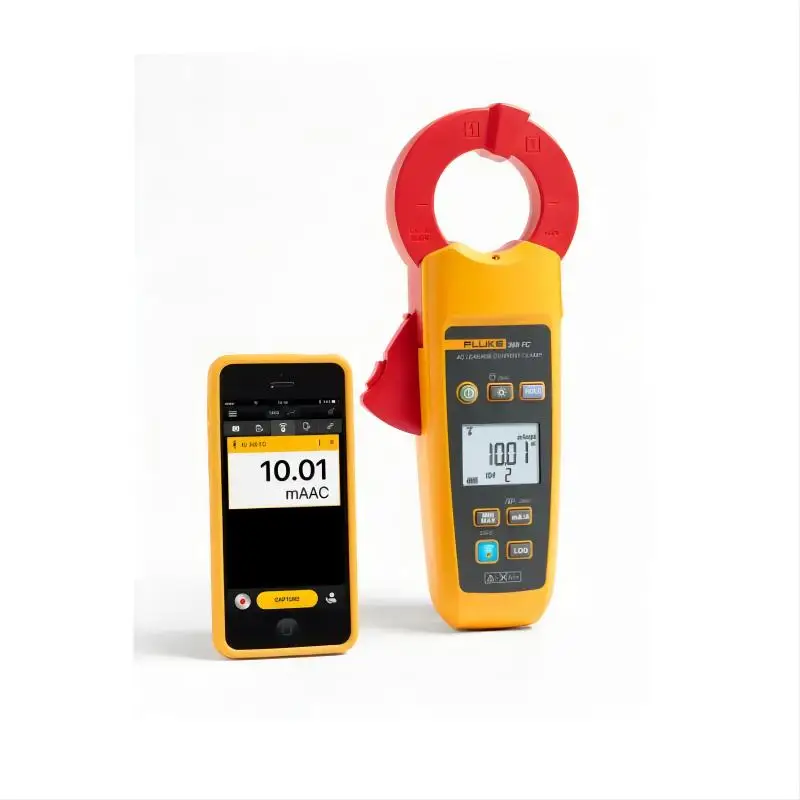

The 368 FC and 369 FC also offer wireless data connectivity via Fluke Connect. As part of Fluke Connect—the industry’s largest system of software and more than 40 wireless test tools—the 368 FC and 369 FC allow you to track changes in leakage current over time, helping to identify potential problems before they turn into major failures.
Specification
Electrical Specifications
Measurement Function
Alternating current
AC Ampere Range
3, 30, 300 mA
3, 30, 60 A
Range Selection
mA/A: Manual selection
3/30/300 mA: Automatic selection
3/30/60 A: Automatic selection
Range/Resolution
3/0.001 mA
30/0.01 mA
300/0.1 mA
3/0.001 A
30/0.01 A
60/0.1 A
Accuracy - Filter Activated (40 to 70 Hz), Filter Off (40 to 1 kHz)
3 mA to 30 A: 1% + 5 digits
60 A: 2% + 5 digits
Frequency
40 Hz to 1 kHz
Crest Factor
3
General Specifications
Display (LCD)
Digital readout: 3300 count
Display Refresh Rate
4 times/sec
Maximum Conductor Diameter
1.6" (40 mm)
Battery
2 x AA, IEC LR6, NEDA 15A, alkaline
Battery Life
Expected battery life, without using backlight and spotlight, is more than 150 hours
Automatic Shut-Down
Meter automatically shuts down after 15 minutes of inactivity
Operating Temperature
14 to 122°F (-10 to 50°C)
Storage Temperature
-40 to 140°F (-40 to 60°C)
Operating Humidity
Non-condensing at <50°F (<10°C)
90% relative humidity at 50 to 86°F (10 to 30°C)
75% relative humidity at 86 to 104°F (30 to 40°C)
45% relative humidity at 104 to 122°F (40 to 50°C)
Operating Altitude
6561.7' (2000 m)
Storage Altitude
39,370.1' (12,000 m)
Dimensions
9.2 x 4 x 1.8" (234 x 101 x 46 mm)
Weight
1.1 lbs (500 g)
Safety Specifications
General Safety
IEC 61010-1: Pollution Degree 2
Measurement Safety
IEC 61010-2-032: CAT III 600 V/CAT IV 300 V
Current Sensor Action Category
IEC 61557-13: Class 2, ≤30 A/m

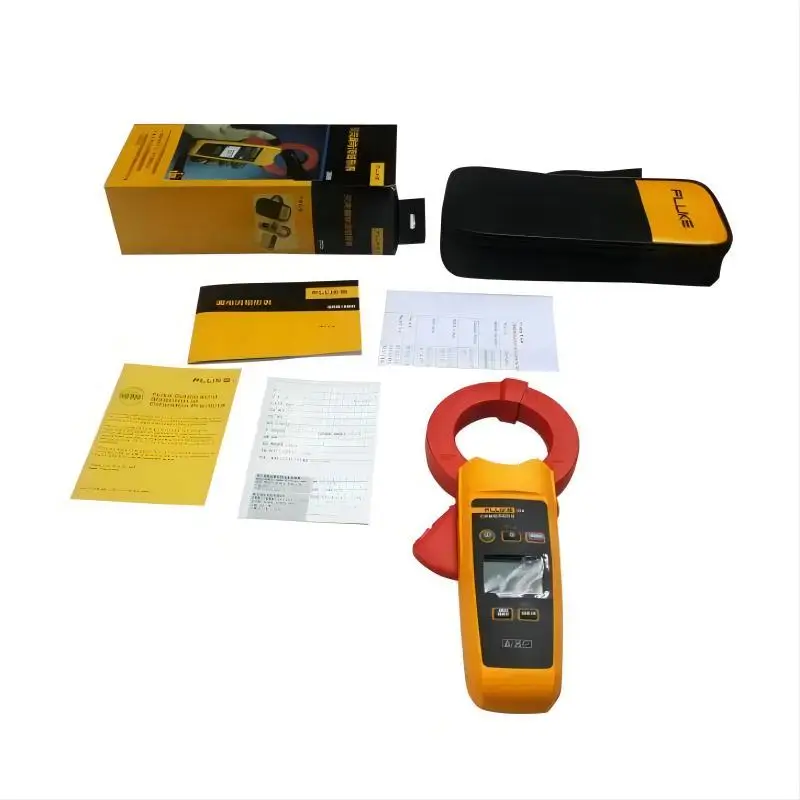

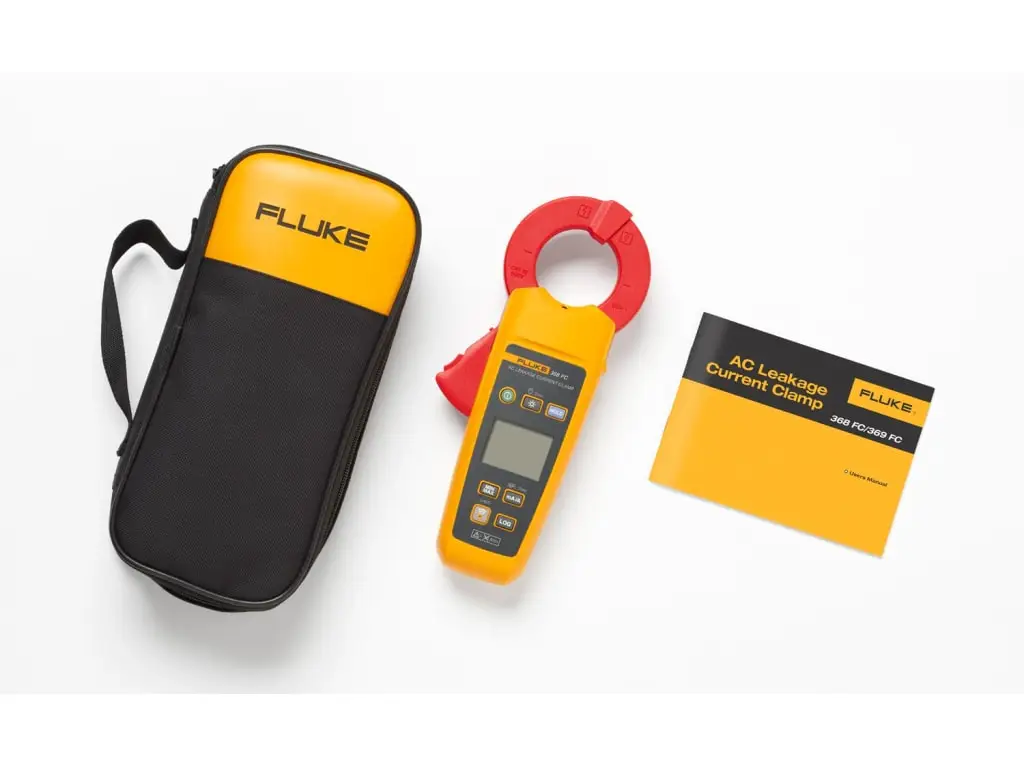

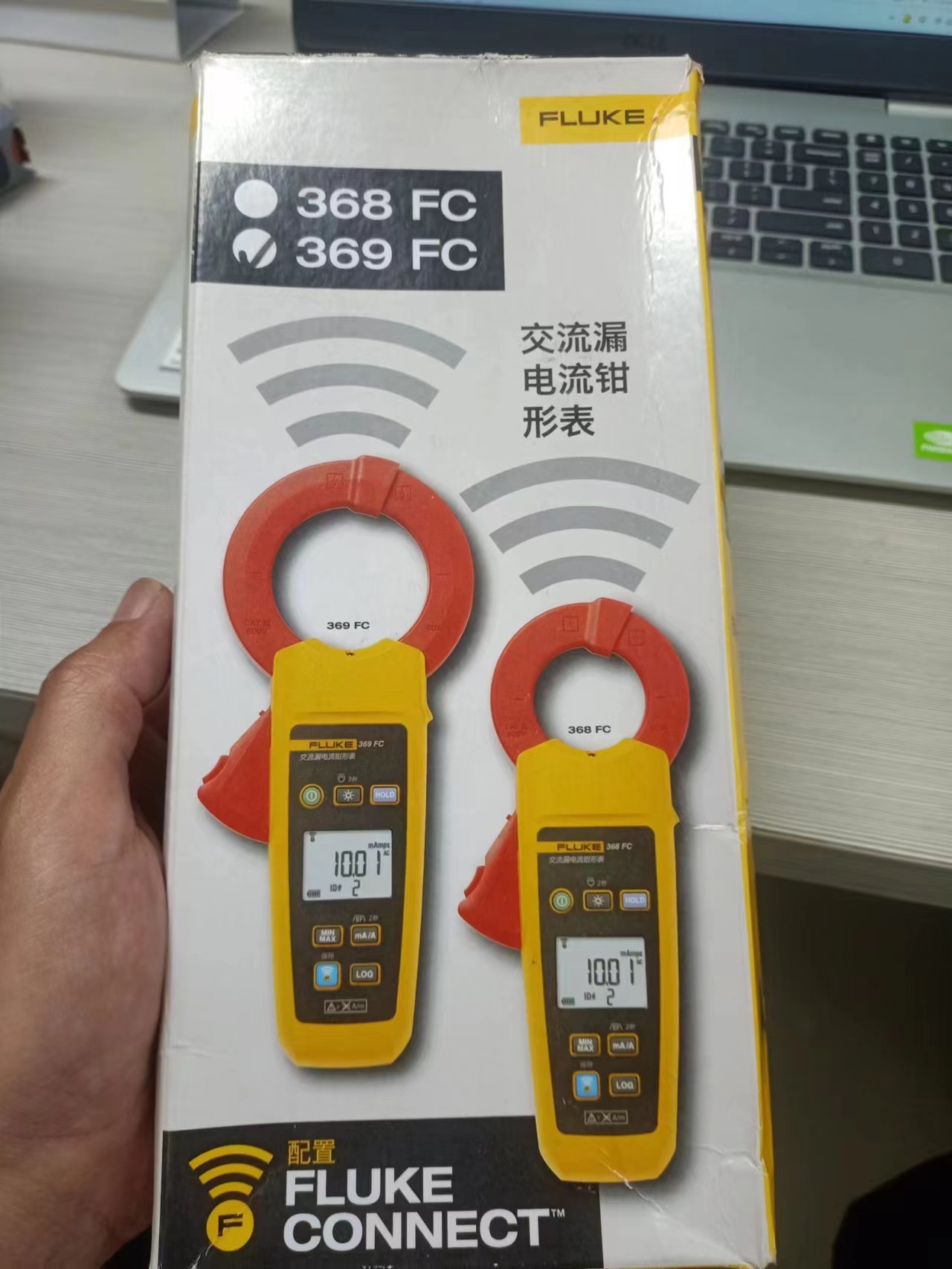

Packing & Delivery
Fluke 368FC 369FC True RMS Leakage Current Digital Clamp Meter 40 mm Fluke 369
Fluke 368FC 369FC True RMS Leakage Current Digital Clamp Meter 40 mm Fluke 369
Fluke 368FC 369FC True RMS Leakage Current Digital Clamp Meter 40 mm Fluke 369
Fluke 368FC 369FC True RMS Leakage Current Digital Clamp Meter 40 mm Fluke 369
Fluke 368FC 369FC True RMS Leakage Current Digital Clamp Meter 40 mm Fluke 369
Fluke 368FC 369FC True RMS Leakage Current Digital Clamp Meter 40 mm Fluke 369
Company Profile
Fluke 368FC 369FC True RMS Leakage Current Digital Clamp Meter 40 mm Fluke 369
Fluke 368FC 369FC True RMS Leakage Current Digital Clamp Meter 40 mm Fluke 369
Fluke 368FC 369FC True RMS Leakage Current Digital Clamp Meter 40 mm Fluke 369
As an important international instrument sales platform, our company has the authorization qualifications of many international first-line brands. Relying on the advanced digital information management platform and international procurement platform, we provide more than 100,000 instruments, industrial MRO products, industrial products and spare parts to global customers. Our business scope: industrial testing, non-destructive testing, gas testing, electrical testing, laboratory testing, water quality testing, environmental testing, medical testing... So far, we have become an important partner of many global top 500 companies and well-known local Chinese companies. Create an efficient supply chain system to provide customers with strong supply guarantee.
FAQ
1. who are we? We are based in Guangdong, China, start from 2023,sell to South Asia(10.00%),Central America(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),Mid East(10.00%),North America(10.00%),Domestic Market(5.00%),Oceania(5.00%),Southern Europe(5.00%),Northern Europe(5.00%),Africa(5.00%),Western Europe(5.00%),Eastern Asia(5.00%),South America(5.00%). There are total about 100 people in our office. 2. how can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3.what can you buy from us? Power detection,Air environment detection,Non-destructive testing,Water quality testing,Mechanical testing equipment 4. why should you buy from us not from other suppliers? We have 20 years of experience in design and development, and our products are sold all over the world. We have advanced R&D technology and services, we serve customers all over the world 5. what services can we provide? Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES； Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF; Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow; Language Spoken:English,ChineseFluke 368FC 369FC True RMS Leakage Current Digital Clamp Meter 40 mm Fluke 369Fluke 368FC 369FC True RMS Leakage Current Digital Clamp Meter 40 mm Fluke 369Fluke 368FC 369FC True RMS Leakage Current Digital Clamp Meter 40 mm Fluke 369Fluke 368FC 369FC True RMS Leakage Current Digital Clamp Meter 40 mm Fluke 369Fluke 368FC 369FC True RMS Leakage Current Digital Clamp Meter 40 mm Fluke 369Fluke 368FC 369FC True RMS Leakage Current Digital Clamp Meter 40 mm Fluke 369
