Original UNI-T UT512D/UT512E 2.5kV Insulation Resistance Testers

Name: Original UNIT UT512DUT512E 25kV Insulation Resistance Testers
Brand: UNI-T
Price: 205 USD

Original UNI-T UT512D/UT512E 2.5kV Insulation Resistance Testers Manufactures

Brand Name : UNI-T

Model Number : UT512D

Certification : -

Place of Origin : China

MOQ : 1

Price : USD205/PC

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000

Packaging Details : Original

warranty : 1 Year

brand name : UNI-T

Application : Voltage tester

CAT rating : CAT IV 600V

Product Color : Black+Red

Standard package : Case + carton

Contact Now

Specifications of UT512D/UT512E 2.5kV Insulation Resistance Testers

Rated voltage	UT512D	UT512E	Accuracy
250V	<0.25MΩ	<0.25MΩ	reference only
	0.25MΩ～4.99GΩ	0.25MΩ～4.99GΩ	±(5%+5)
	5.00GΩ～24.9GΩ	5.00GΩ～49.9GΩ	±(20%+10)
	25.0GΩ～100GΩ	50.0GΩ～250GΩ	reference only
500V	<0.50MΩ	<0.50MΩ	reference only
	0.50MΩ～9.99GΩ	0.50MΩ～9.99GΩ	±(5%+5)
	10.0GΩ～49.9GΩ	10.0GΩ～99.9GΩ	±(20%+10)
	50.0GΩ～200GΩ	100GΩ～500GΩ	reference only
1000V	<1.00MΩ	<1.00MΩ	reference only
	1.00MΩ～19.9GΩ	1.00MΩ～19.9GΩ	±(5%+5)
	20.0GΩ～99.9GΩ	20.0GΩ～199GΩ	±(20%+10)
	100GΩ～400GΩ	200GΩ～1.00TΩ	reference only
2500V	<2.50MΩ	<2.50MΩ	reference only
	2.50MΩ～49.9GΩ	2.50MΩ～49.9GΩ	±(5%+5)
	50.0GΩ～249GΩ	50.0GΩ～499GΩ	±(20%+10)
	250GΩ～1.00TΩ	500GΩ～2.50TΩ	reference only
Capacitance test	NA	0.01uF～2.0uF	±(15%+3)
Low resistor test	NA	0.1Ω～600Ω	±(2%+10)
Output voltage(Rating)	stepping voltage range		Step by 10% of each range each time, and adjust the voltage range to 50%~120% of each range； Display accuracy:±(10% read+10V) Output accuracy:±(0%～20%)
250V	350V, 275V, 300V
500V	300V, 350V, 400V, 450V, 500V, 550V, 600V
1000V	500V, 600V, 700V, 800V, 900V, 1000V, 1100V, 1200V
2500V	1250V, 1500V, 1750V, 2000V, 2250V, 2500V
DC voltage	30～1000VDC		±(3%+5)
AC voltage	30～750VAC 50Hz/60Hz		±(3%+5)
Current	0.01nA～3.5mA	0.01nA～5mA
Short-circuit current	about 3.5mA	about 5mA
Features
PI test	automatic display		√
DAR test	automatic display		√
Timing measurement			√
Resistance comparison			√
Monitoring function	Monitor the voltage of measured object and the discharge state after testing.		√
Timer testing	Record testing time automatically. Timing range: 0s～99m and 59s		√
Storage function			999 sets
Data transmission	Upload testing data to computer via USB cable.		√
Low Battery indication			√
Auto power off			√
Dimensions			238 * 166 * 90.5mm
CAT rating	CAT Ⅳ 600V
Certificates	CE/UKCA

Product Tags:

2.5kV Insulation Resistance Testers

UNI-T Insulation Resistance Testers

UT512E Insulation Resistance Testers

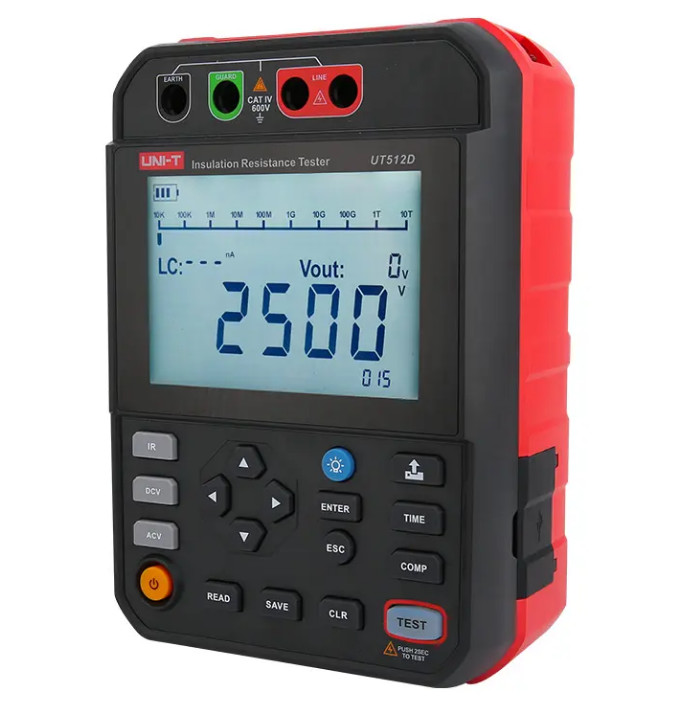

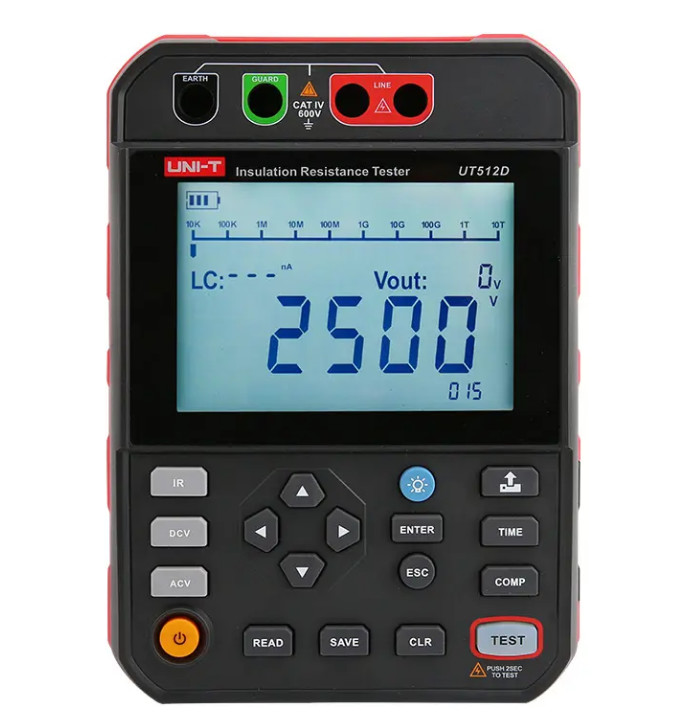

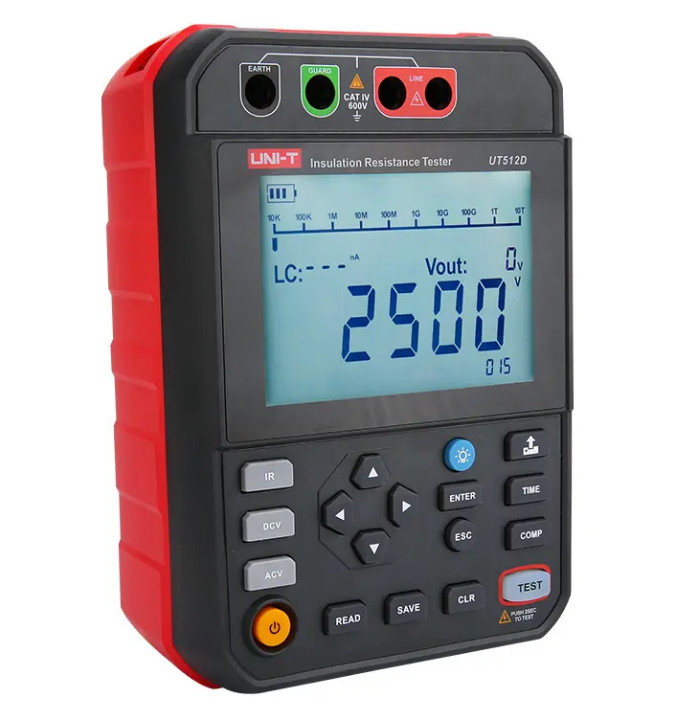

Original UNI-T UT512D/UT512E 2.5kV Insulation Resistance Testers Images
